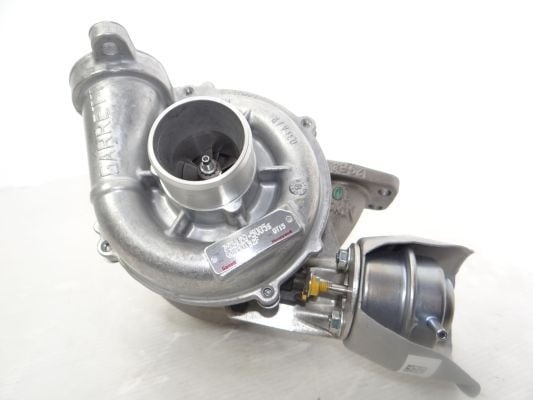

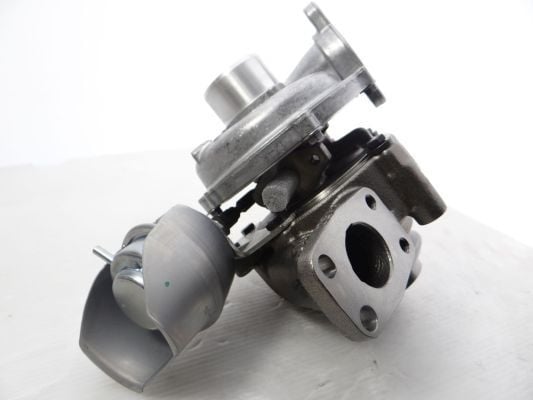

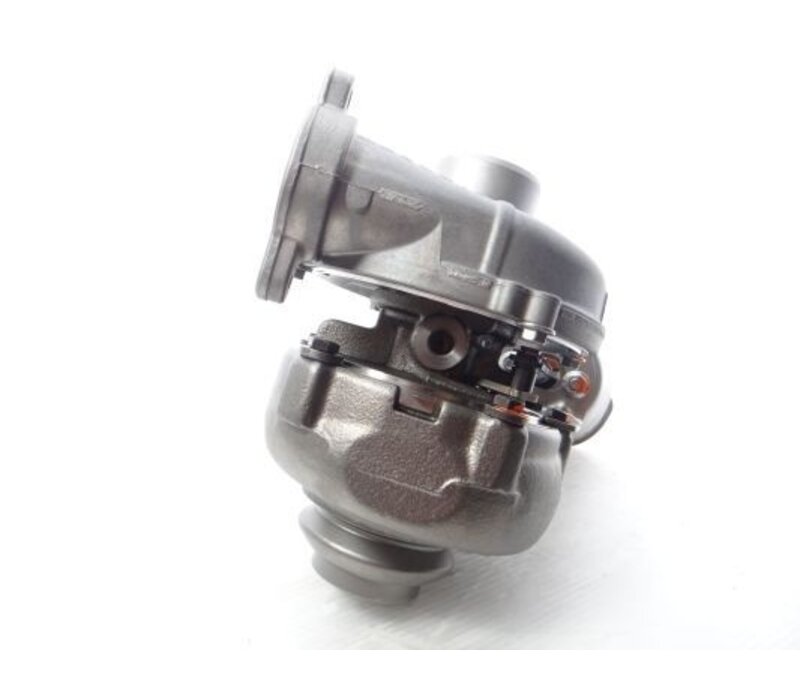

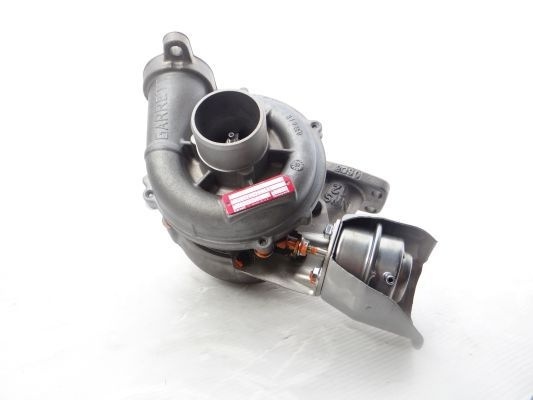

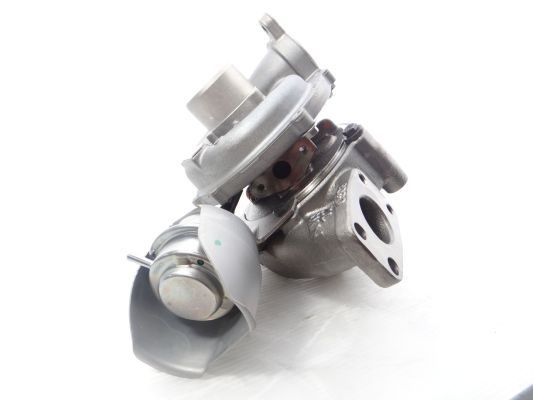

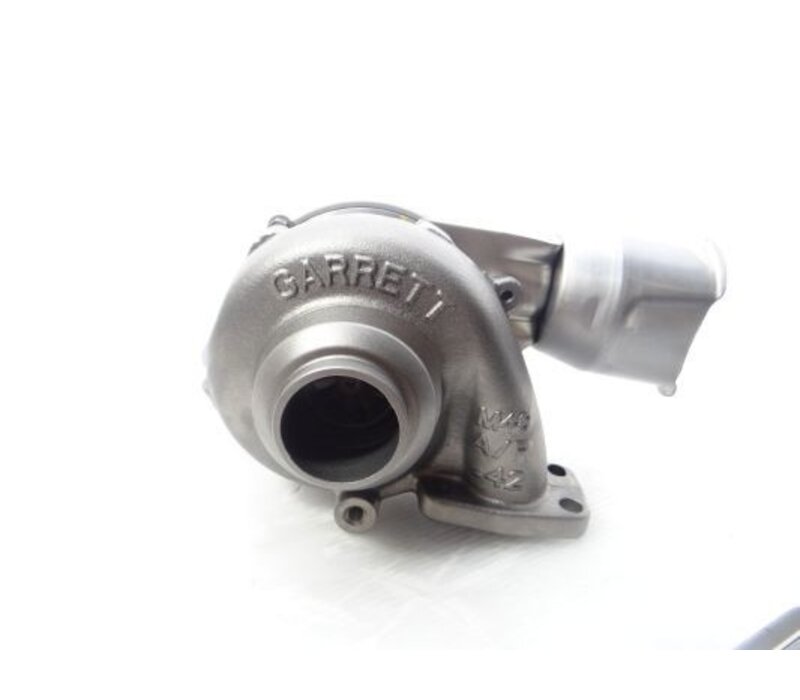

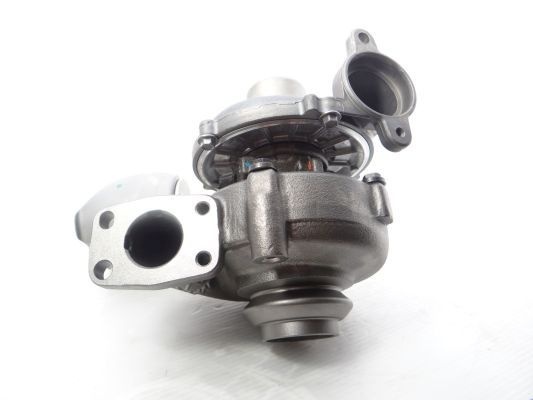

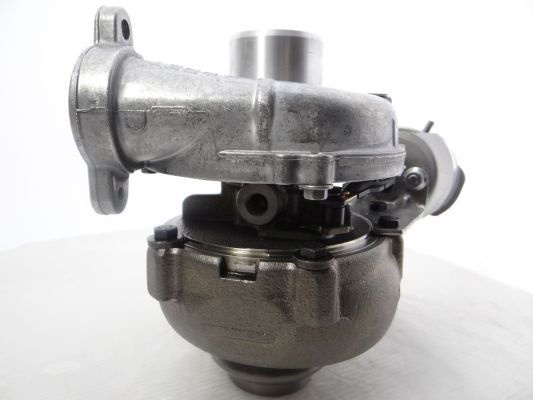

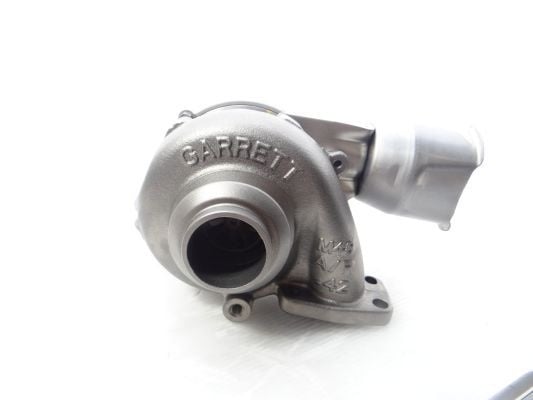

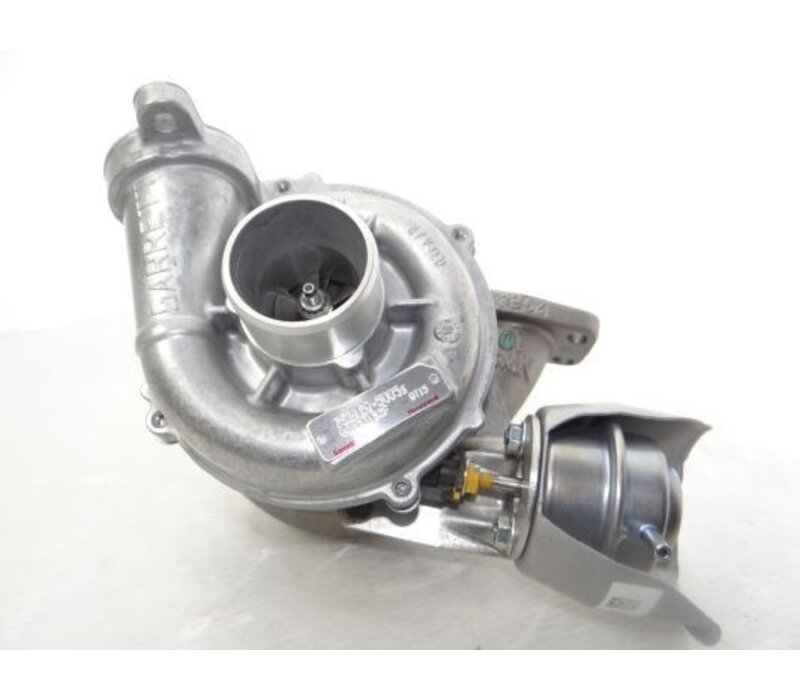

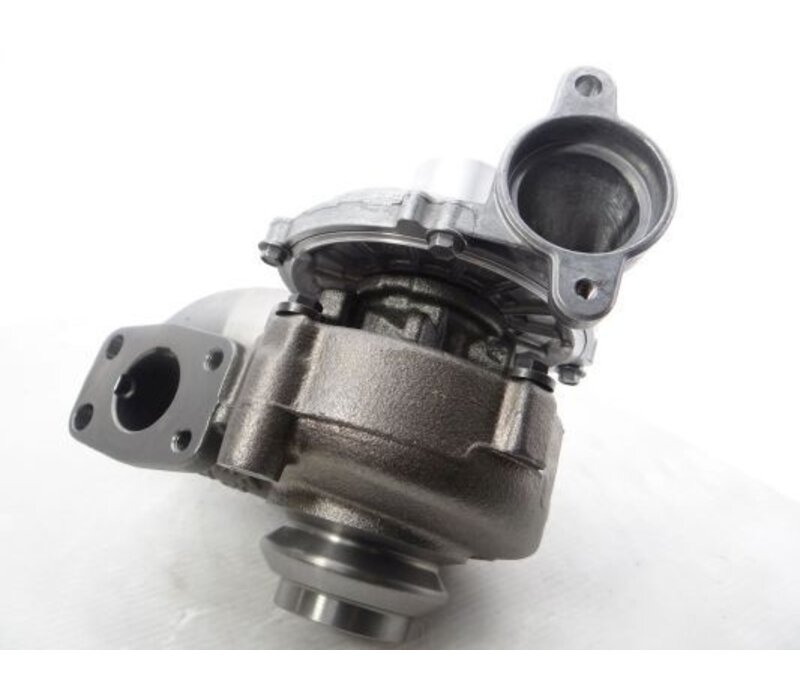

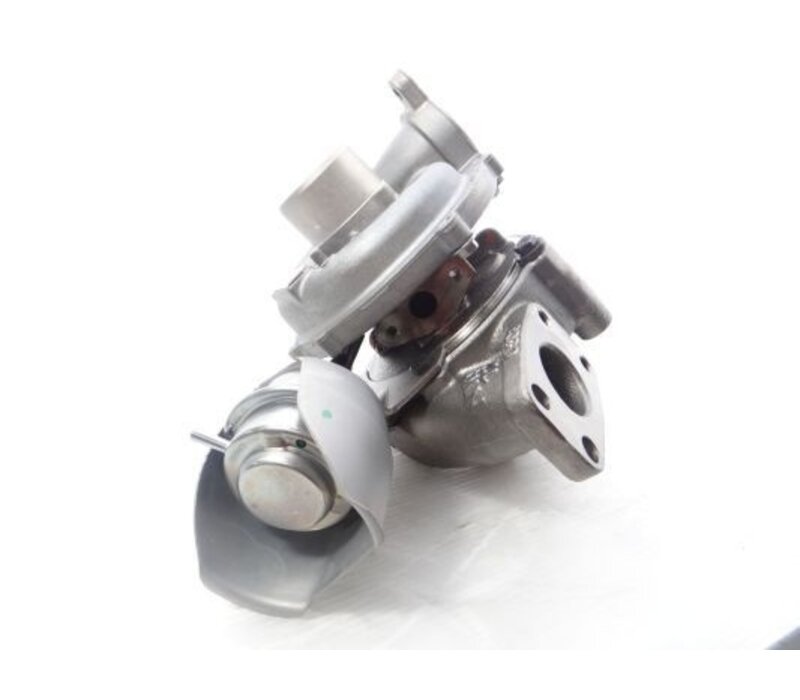

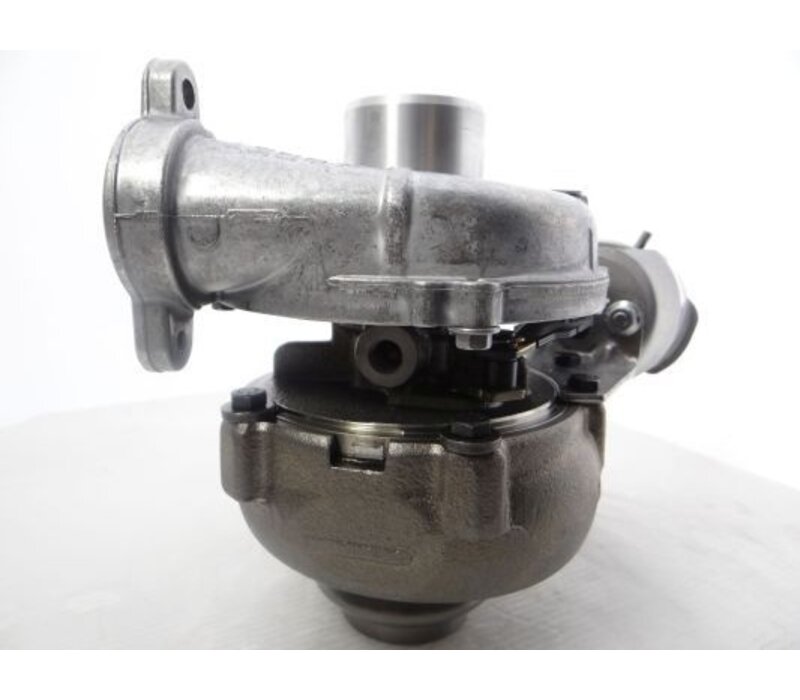

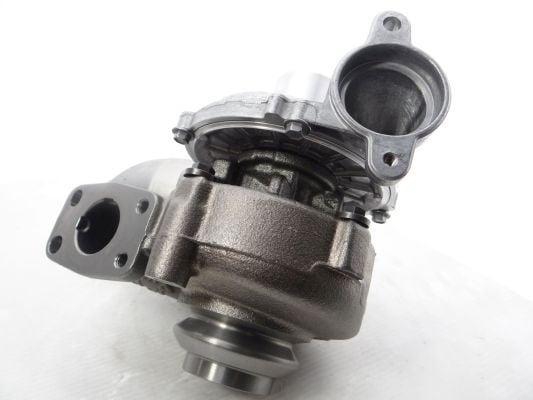

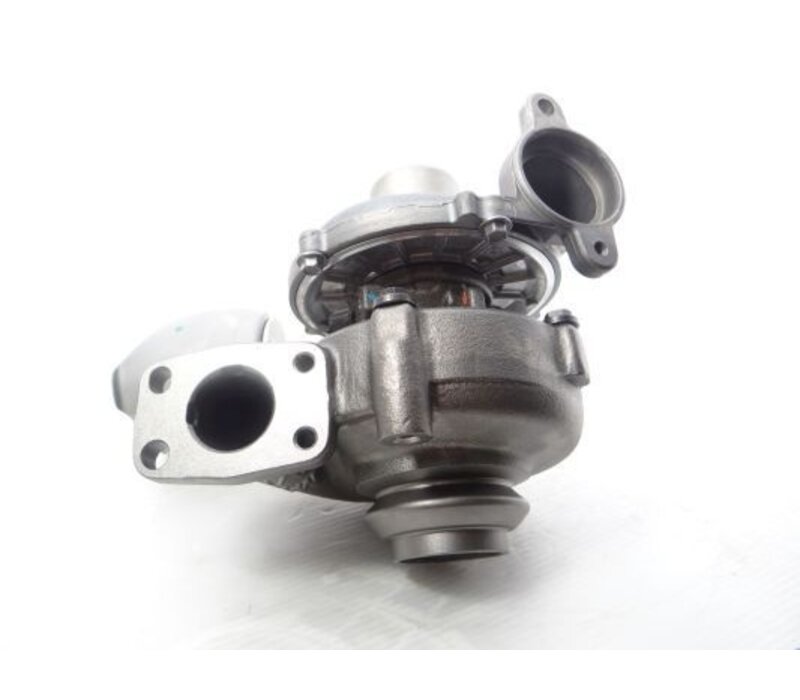

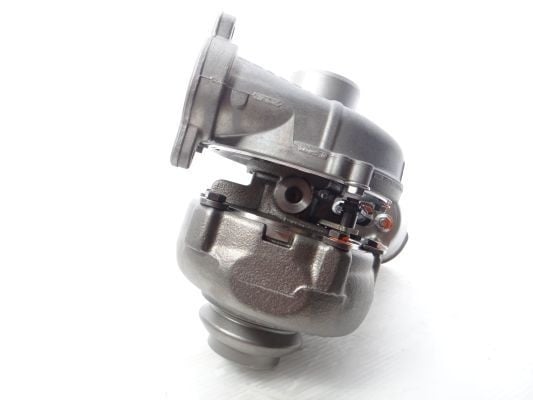

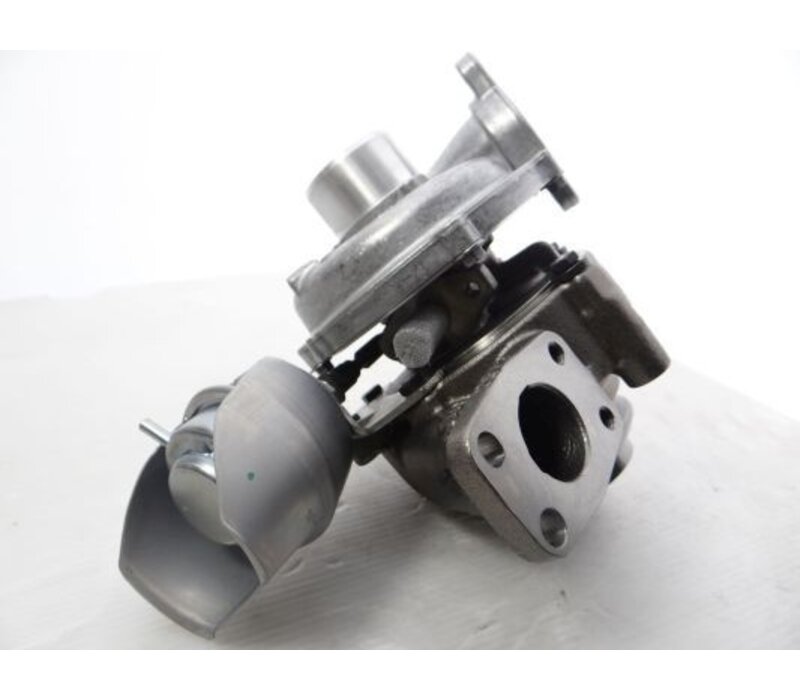

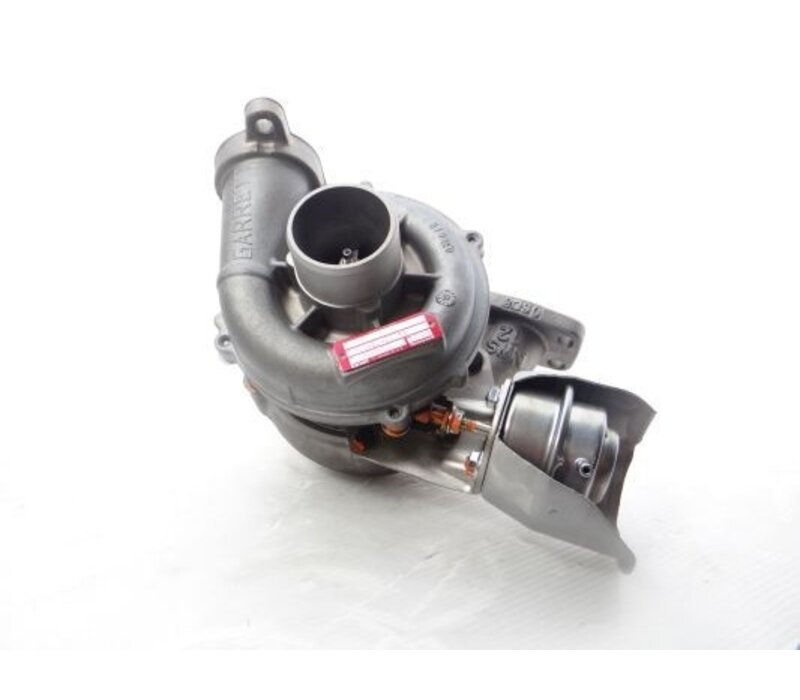

Original Garrett Turbocharger 753420-5006S | CITROEN MAZDA MINI PEUGEOT
This genuine Garrett turbocharger is suitable for various Citroën, Peugeot and MINI models equipped with the 1.6 HDi diesel engine. It is used in vehicles with an engine output of 90 to 111 HP, including the Citroën Berlingo, C2, C3, C4, C5 and Xsara Picasso, Peugeot 1007, 206, 207, 307, 308, 407, 3008, 5008 and Partner, as well as the MINI Cooper D (R55/R56).
Before ordering, please carefully verify the OE number, part number, production year, engine specification and vehicle model. Different turbochargers may have been fitted to the same vehicle model.
Suitable for, among others
Citroën Berlingo, C2, C3, C3 Picasso, C4, C4 Picasso, C5 and Xsara Picasso
MINI Cooper D (R55 / R56)
Peugeot 1007, 206, 207, 307, 308, 407, 3008, 5008 and Partner
The complete vehicle compatibility list can be found in the table below. If you are unsure, please send us your VIN or registration number before ordering and we will be happy to check compatibility for you.
Manufactured to original specifications, this turbocharger delivers an excellent fit, reliable performance and long service life. It is the ideal replacement for a worn or defective turbocharger.
This turbocharger is manufactured to Original Garrett quality.
Product Specifications
Biturbo: No
With gasket kit: Yes
Control type: Pressure
With variable geometry: Yes
Compressor wheel: Aluminium
Condition: New
Warranty: 25 months
Weight: 5.32 kg
Turbo type: Exhaust gas turbocharger
VNT™ turbocharger
Actuation: Pneumatic
Additional information: incl. magnetic clutch
Fuel type: Diesel
Emission standard: Euro 4
For type code: PV
For model / type: C3 1.6 HDi
For engine code: DV6TED4
Power: 109 HP
Engine capacity: 1.6 l
Number of cylinders: 4
Production date from: 2006
OE Numbers
11657804903, 7804903, 0375J3, 0375J6, 0375J7, 0375J8, 1231096, 1319614, 1355027, 1441253, 36000722, 3M5Q6K682AA, 3M5Q6K682AB, 9650764480, 9663199280, 1254337, 1340133, 1465162, 1479055, 1789074, 3M5Q6K682AC, 3M5Q6K682AE, 3M5Q6K682AG, 3M5Q6K682AJ, 3M5Q6K682AK, Y60113700, Y60113700A, Y60113700B, Y60113700C, Y60113700D, Y60113700E, Y60113700F, Y60113700G, 9651839880, 9654128780, 9656125880, 9657248680, 9657531880, 9657571880, 9660641380, 31259243, 36002480, 8252088, 8603489, 740821, 740821-0001, 740821-0002, 740821-5001S, 740821-5002S, 750030, 750030-0001, 750030-0002, 753420, 753420-0001, 753420-0002, 753420-0003, 753420-0004, 753420-0005, 753420-0006, 753420-0007, 753420-5001S, 753420-5002S, 753420-5003S, 753420-5004S, 753420-5005S, 753420-5006S, 753420-5007S, 753420-500S, 753420-9005S, 753420-9005W, 753420-9006S, 753420-9006W
Always verify the OE numbers, engine code and vehicle specifications before placing your order.
Important Information
Please ensure this turbocharger is compatible with your vehicle before installation.
When replacing the turbocharger, we recommend checking or replacing the engine oil, oil filter and the turbo oil feed and return lines.
Turbocharger failure is often caused by oil contamination or insufficient lubrication. The root cause should always be resolved before installing the new turbocharger.
Professional installation according to the manufacturer's specifications is strongly recommended.
Geschikte voertuigen / Passende Fahrzeuge / Compatible Vehicles
| Merk / Marke / Brand | Model / Modell / Model | Bouwjaar / Baujahr / Production Year | Platform / Plattform / Platform | Type / Typ / Type | Motor / Motor / Engine | Beperkingen / Einschränkungen / Restrictions |
|---|---|---|---|---|---|---|
| Citroën | Berlingo Kasten/Großraumlimousine | 2008/04–2025/12 | B9 | 1.6 HDi 110 | 1560 cm³, 80 kW, 109 PS | |
| Citroën | Berlingo Multispace | 2008/04–2025/12 | B9 | 1.6 HDi 110 | 1560 cm³, 80 kW, 109 PS | |
| Citroën | C2 | 2005/09–2009/12 | JM | 1.6 HDi | 1560 cm³, 80 kW, 109 PS | |
| Citroën | C3 I | 2005/09–2009/12 | FC, FN | 1.6 16V HDi | 1560 cm³, 80 kW, 109 PS | |
| Citroën | C3 Picasso | 2009/02–2010/12 | SH | 1.6 HDi | 1560 cm³, 80 kW, 109 PS | |
| Citroën | C4 Coupe | 2004/11–2011/07 | LA | 1.6 HDi | 1560 cm³, 80 kW, 109 PS | |
| Citroën | C4 Grand Picasso I | 2006/10–2011/06 | UA | 1.6 HDi | 1560 cm³, 80 kW, 109 PS | |
| Citroën | C4 I | 2004/11–2011/07 | LC | 1.6 HDi | 1560 cm³, 80 kW, 109 PS | |
| Citroën | C4 Picasso I Großraumlimousine | 2007/02–2013/08 | UD | 1.6 HDi | 1560 cm³, 80 kW, 109 PS | |
| Citroën | C4 Stufenheck | 2006/07–2011/07 | – | 1.6 HDi | 1560 cm³, 80 kW, 109 PS | |
| Citroën | C5 II | 2004/09–2008/01 | RC | 1.6 HDi | 1560 cm³, 80 kW, 109 PS | |
| Citroën | C5 II Break | 2004/09–2008/01 | RE | 1.6 HDi | 1560 cm³, 80 kW, 109 PS | |
| Citroën | C5 III | 2008/02–2010/10 | RD | 1.6 HDi 110 | 1560 cm³, 80 kW, 109 PS | |
| Citroën | C5 III Break | 2008/02–2010/10 | RW | 1.6 HDi 110 | 1560 cm³, 80 kW, 109 PS | |
| Citroën | C5 Kasten/Kombi | 2004/09–2008/01 | RE | 1.6 HDi | 1560 cm³, 80 kW, 109 PS | |
| Citroën | Xsara Picasso | 2004/05–2011/12 | N68 | 1.6 HDi | 1560 cm³, 80 kW, 109 PS | |
| MINI | Mini | 2006/11–2010/09 | R56 | Cooper D | 1560 cm³, 80 kW, 109 PS | |
| MINI | Mini Clubman | 2007/10–2010/02 | R55 | Cooper D | 1560 cm³, 80 kW, 109 PS | |
| Peugeot | 206 CC | 2005/04–2007/02 | 2D | 1.6 HDi 110 | 1560 cm³, 80 kW, 109 PS | |
| Peugeot | 206 SW | 2004/05–2008/12 | 2E/K | 1.6 HDi 110 | 1560 cm³, 80 kW, 109 PS | |
| Peugeot | 206 Schrägheck | 2004/05–2007/02 | 2A/C | 1.6 HDi 110 | 1560 cm³, 80 kW, 109 PS | |
| Peugeot | 207 | 2006/02–2013/10 | WA, WC | 1.6 HDi | 1560 cm³, 66 kW, 90 PS | |
| Peugeot | 207 | 2006/02–2013/10 | WA, WC | 1.6 HDi | 1560 cm³, 80 kW, 109 PS | |
| Peugeot | 207 CC | 2007/02–2015/01 | WD | 1.6 HDi | 1560 cm³, 80 kW, 109 PS | |
| Peugeot | 207 Kasten/Schrägheck | 2006/04–2012/12 | WA, WC | 1.6 HDi | 1560 cm³, 80 kW, 109 PS | |
| Peugeot | 207 SW | 2007/06–2012/12 | WK | 1.6 HDi | 1560 cm³, 66 kW, 90 PS | |
| Peugeot | 207 SW | 2007/06–2012/12 | WK | 1.6 HDi | 1560 cm³, 80 kW, 109 PS | |
| Peugeot | 307 | 2005/04–2009/03 | 3A/C | 1.6 HDi | 1560 cm³, 66 kW, 90 PS | |
| Peugeot | 307 | 2004/02–2009/03 | 3A/C | 1.6 HDi 110 | 1560 cm³, 80 kW, 109 PS | |
| Peugeot | 307 Break | 2005/04–2008/04 | 3E | 1.6 HDi | 1560 cm³, 66 kW, 90 PS | |
| Peugeot | 307 Break | 2004/02–2008/04 | 3E | 1.6 HDi 110 | 1560 cm³, 80 kW, 109 PS | |
| Peugeot | 307 SW | 2005/04–2008/04 | 3H | 1.6 HDi 90 | 1560 cm³, 66 kW, 90 PS | |
| Peugeot | 307 SW | 2003/11–2007/12 | 3H | 1.6 HDi 110 | 1560 cm³, 80 kW, 109 PS | |
| Peugeot | 308 CC | 2009/02–2012/05 | 4B | 1.6 HDi | 1560 cm³, 82 kW, 111 PS | |
| Peugeot | 308 I | 2007/09–2014/10 | 4A, 4C | 1.6 HDi | 1560 cm³, 66 kW, 90 PS | |
| Peugeot | 308 I | 2007/09–2014/10 | 4A, 4C | 1.6 HDi | 1560 cm³, 80 kW, 109 PS | |
| Peugeot | 308 SW I | 2007/09–2014/10 | 4E, 4H | 1.6 HDi | 1560 cm³, 66 kW, 90 PS | |
| Peugeot | 308 SW I | 2007/09–2014/10 | 4E, 4H | 1.6 HDi | 1560 cm³, 80 kW, 109 PS | |
| Peugeot | 407 | 2004/05–2010/12 | 6D | 1.6 HDi 110 | 1560 cm³, 80 kW, 109 PS | |
| Peugeot | 407 SW | 2004/05–2010/12 | 6D, 6E | 1.6 HDi 110 | 1560 cm³, 80 kW, 109 PS | |
| Peugeot | 407 SW Kasten/Kombi | 2004/08–2010/12 | 6E | 1.6 HDi | 1560 cm³, 80 kW, 109 PS | |
| Peugeot | 1007 | 2007/06–2014/12 | KM | 1.6 HDi | 1560 cm³, 80 kW, 109 PS | |
| Peugeot | 3008 Großraumlimousine | 2009/06–2016/08 | 0U | 1.6 HDi | 1560 cm³, 80 kW, 109 PS | |
| Peugeot | 3008 Van | 2009/06–2016/08 | 0U | HDi 110 | 1560 cm³, 80 kW, 109 PS | |
| Peugeot | 5008 | 2009/09–2017/03 | 0E, 0U | 1.6 HDi | 1560 cm³, 80 kW, 110 PS | |
| Peugeot | Partner Kasten/Großraumlimousine | 2008/04–2012/12 | – | 1.6 HDi | 1560 cm³, 80 kW, 109 PS | |
| Peugeot | Partner Kasten/Großraumlimousine | 2008/04–2012/12 | – | 1.6 HDi 16V | 1560 cm³, 66 kW, 90 PS | |
| Peugeot | Partner Kasten/Großraumlimousine | 2009/09–2012/12 | – | 1.6 HDi 16V 4x4 | 1560 cm³, 66 kW, 90 PS | |
| Peugeot | Partner Pritsche/Fahrgestell | 2009/01–2012/12 | – | 1.6 HDi 16V | 1560 cm³, 66 kW, 90 PS | |
| Peugeot | Partner Tepee | 2008/04–2012/12 | – | 1.6 HDi | 1560 cm³, 80 kW, 109 PS |
*
